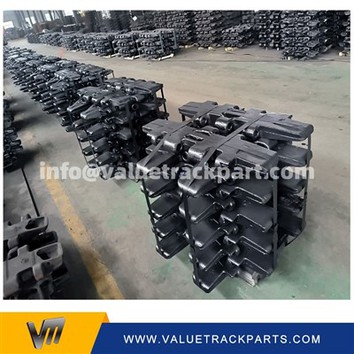

Crawler Crane Track Shoe

The crane track pads are specially designed for chain tracks and are designed to optimize performance on flat and stable surfaces. Its design carefully considers the best match of the contact area and friction with the ground to ensure solid support and reliable traction during use.

The triple-grouser track shoe has three protrusions on the bottom surface, which distributes the weight of the crane over a larger area, allowing it to work on more challenging terrains. This type of track shoe provides

better stability and excellent grip, making it ideal for working on rough terrain or even climbing hills.

The underside of the double grouser crawler track shoe has two protrusions that help spread the weight of the crane over a small area, reducing ground pressure. It is ideal for working on soft and muddy terrain as it helps minimize ground disturbance. It is ideal for climbing up steep slopes or working on uneven surfaces.

The flat crane track pads is heavier and is suitable for crawler cranes without links. It is a more common crawler crane track shoe. This flat plate structure not only effectively reduces energy consumption during operation, but also significantly improves the operating efficiency of the machine.

With over 28 years of industry expertise, we specialize in crafting custom crane track shoes tailored to specific needs rather than just adapting existing makes and models. Customers can provide dimensional measurements or drawings, and we utilize our experience to ensure precision in producing track plates that fit perfectly. While measurements from a tape may lack the accuracy of a vernier caliper, our extensive experience allows us to make informed judgments during production. This ensures the final crawler crane undercarriage parts meet exact requirements, guaranteeing optimal performance and durability that align seamlessly with existing crawler cranes.

Our crawler crane track pads are meticulously manufactured according to stringent international standards, proudly holding certifications such as ISO9001:2015 and SGS. These certifications demonstrate our strict control over quality management throughout the entire production process.

Following completion of manufacturing, each crawler crane track pad undergoes a comprehensive series of tests to verify its integrity and performance. These tests include thorough examinations of chemical composition to ensure material purity and durability. Additionally, rigorous assessments of tensile strength, hardness, and ultrasonic characteristics are conducted to guarantee that every aspect of our crawler crane parts meets and exceeds the highest industry standards.

By adhering strictly to these meticulous quality assurance measures, we ensure that our customers receive crawler crane track pads of unmatched reliability and longevity. This commitment to excellence not only safeguards the performance of your equipment but also provides you with the peace of mind that comes from investing in superior quality crawler crane track pads.

Our dedication to customer satisfaction is underscored by a robust 2,500 working hour warranty on every set of crawler crane track shoes we produce. This warranty serves as a testament to the confidence we have in our craftsmanship and materials. In the unlikely event that any quality issues surface during this warranty period, our commitment to excellence ensures prompt and effective resolution. We offer comprehensive support, which includes meticulous inspections, expedited repairs, or replacement of parts as necessary. Our goal is not only to rectify any issues swiftly but also to minimize any potential downtime and associated repair costs for your equipment. This proactive approach guarantees that your machinery maintains optimal performance throughout its operational lifespan, allowing you to focus on your projects with confidence in our dependable products and support services.

Operating from a nearly 4,000 square meter facility, VM boasts over 15 automated production workshops covering casting, forging, heat treatment, and machining processes. Advanced equipment and technology in our casting and forging workshops enable precise control over material composition and properties, ensuring consistent crane parts quality. Our machining workshop features multi-axis CNC machines and precision tools capable of handling complex parts with high accuracy. These automated production lines not only enhance efficiency but also guarantee the stability and reliability of our manufacturing processes. As a result, we confidently assure customers of timely delivery within 7-14 days for any order of crawler undercarriage parts.

On construction sites, crawler cranes are often used for lifting operations of large structures, such as steel structure installation of high-rise buildings and lifting of large concrete components. Since construction sites are usually complex and the ground conditions are relatively poor, traditional wheeled cranes are often unable to cope with the task. Crawler cranes have excellent passing ability and can also move forward steadily in muddy and rugged construction sites to ensure the progress of construction.

In the loading and unloading operations of ports and wharves, crawler cranes often undertake the task of loading and unloading large cargoes, such as containers, heavy machinery and equipment, etc. Therefore, large-tonnage crawler cranes are often used for port operations. They can have strong stability and grip, can operate flexibly between ships and shores, and complete the fast and efficient loading and unloading of cargoes. This requires the crawler crane plates to be made of high-quality materials with strong load-bearing capacity.

 In bridge engineering, the lifting of large bridge components, such as piers and beam sections, is often involved. This requires lifting equipment with sufficient load-bearing capacity and stability, and crawler cranes have these characteristics. It can play a role in different types of bridge projects to ensure construction progress and quality. Such occasions require crawler crane track shoes made of high-strength materials.

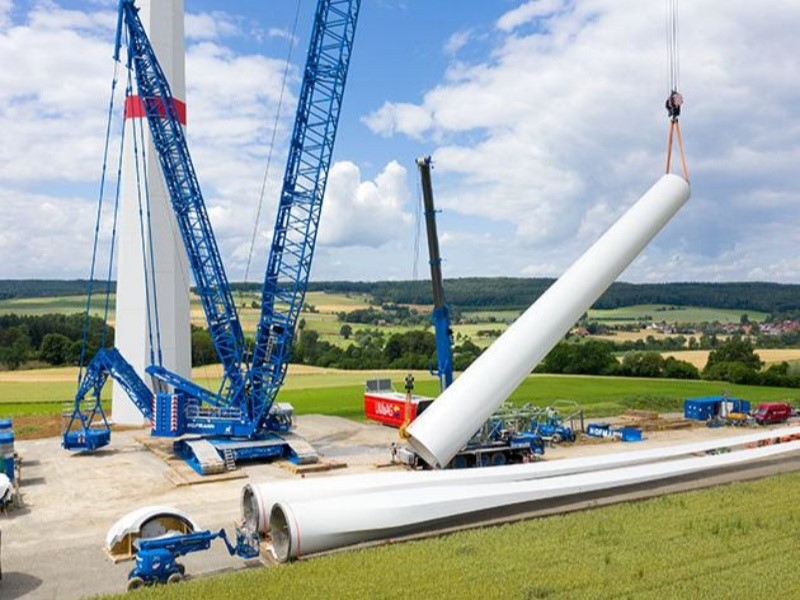

Crawler cranes are crucial in the construction and upkeep of vital facilities like power plants, petrochemical plants, and transmission lines. Examples include the Liebherr LR 11000, known for its substantial lifting capacity and precise handling, making it ideal for lifting heavy components in power and petrochemical installations. The Demag CC 8800 stands out with its modular design and high lifting capabilities, essential for complex projects across heavy industries. Similarly, the Kobelco 7150 offers robust construction and efficient performance, particularly valued in the maintenance of transmission lines and other critical infrastructure.
