Track Shoe for KOBELCO BME550 Lattice Boom Crane
Kobelco BME550 lattice boom crane is a new model from KOBELCO Cranes Co. This crane is with 55Ton lifting capacity.
1. Details of KOBELCO BME550 as below:
Crane Boom | BME550 |
Max. Lifting Capacity | 55 t /3.4 m |
Max. Length | 51.8 m |
Main & Aux. Winch | |
Max. Line Speed | 100 m/min (1st layer) |
Rated Line Pull | 108 kN (11 tf) |
Max. Line Pull | 196 kN (20 tf) |
Wire Rope | 26 mm |
Wire Rope Length | 160 m (Main) 110 m (Aux.)170 m (Main) 125 m (Aux.) |
Brake Type | Wet-type multiple-disc brake |
Free-Fall | Standard |
Working Speed | |
Swing Speed | 3.5 min-1 (rpm) |
Travel Speed | 1.7/1.1 km/h |

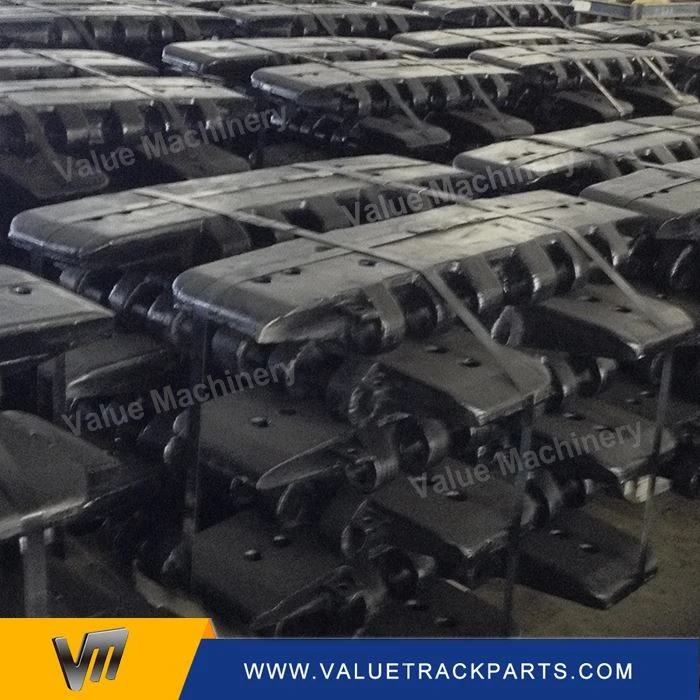

2. KOBELCO BME550 Track Shoe Information
For KOBELCO BME550 crawler crane, we can supply BME550 track shoe, BME550 track roller, BME550 top roller, BME550 idler and BME550 sprocket.
About the BME550 track shoe, we use the material of 35SiMn, 31Mn2Si. We have the logo on TK350 track shoe-- “VM”, that’s our brand. The product strict according to the control of ISO9001: the reliable quality, longevity and durability, reasonable price, delivery in time
Detail information for the BME550 track pad in following form for your reference:
Material | 35SiMn, 31Mn2Si |
Technique | Casting |
Heat Treated | Whole quenching & tempering, then surface hardening |
Delivery Time | 10-20 days to produce |
Logo | We can print your own logo on the parts. |
Trade Term | FOB, CFR, CIF |
Guarantee Period | 2000- 2500 working hours |
Sea Port | Qingdao |
3. Package and Delivery
We usually packed 20 pcs KOBELCO BME550 track shoe into one pallet. The pallet must reach to export standard. So, we can guarantee the surface of parts is prefect when arrive to your side.
Any inquiry, pls contact us freely.
