Sprocket for 80ton Hitachi Sumitom SCX800-2 Crawler Crane

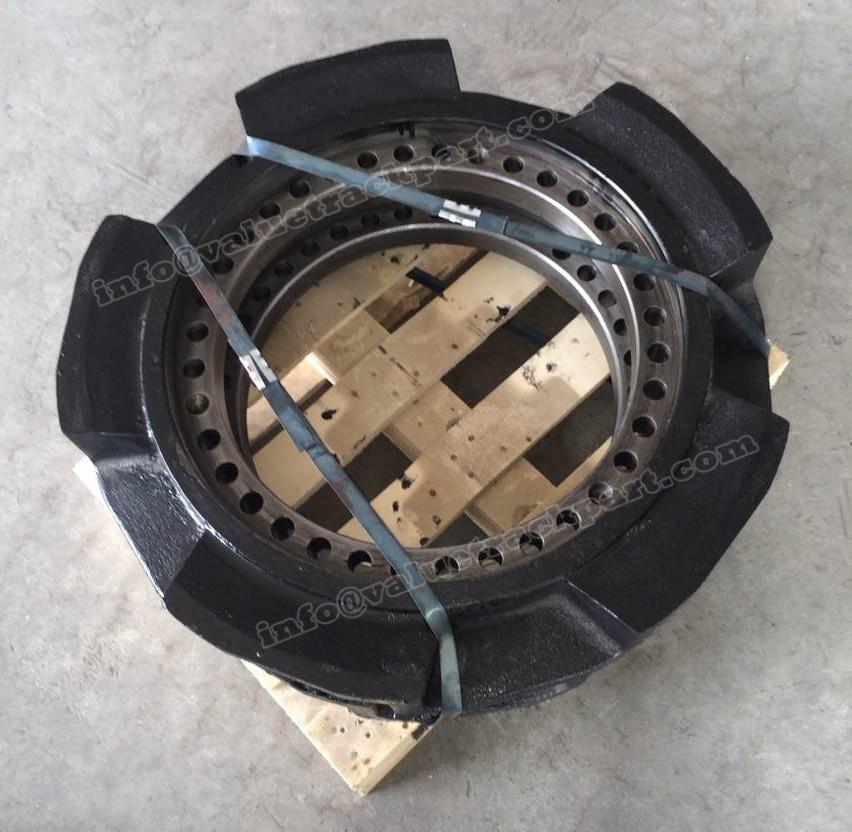

The order for Sumitomo SCX800-2 Sprockets is finished today, the customer received this sprockets today.
Let us introduce the SCX800-2 Sprocket Tumbler information:
a. DRIVE SPROCKETS are Cast steel, heat treated; one per side frame. Track drive sprocket assembly bolt-coupled to 3-stage planetary reduction gear unit outer case as an integral part of shoe-in type traction motor. Sealed between parts of rotation and non-rotation of the motor with floating seal.
b. Order quantity is 4 pcs and was delivered by Sea.
Other undercarriage parts for Hitachi Sumitomo SCX800-2 includes SCX800-2 Track Shoe, SCX800-2 Lower Roller, Scx800-2 upper Roller and Idler assy also can be supplied by us.
We can supply full undercarriage parts for SCX800-2 Crawler Crane, if you has requirement, please contact us freely: info@valuetrackpart.com
About the Crawler Crane
TRAVEL AND STEERING: A bi-directional, shoe-in type axial piston hydraulic motor bolt-couples with drive sprocket thru 3-stage planetary reduction gear unit outer case at each crawler side frame end for travel and steer. Straight-line travel (forward or reverse), pivot or differential turns, and counter-rotation for spin turns available. Brake — Spring-applied, power hydraulically released multiple wet-disc type automatic brake; located within hydraulic motor. Brakes automatically set when travel levers are in neutral or when engine is shut down. Travel speed — Two stages; 1.8/1.3km/hr. (based on flat, level and firm supporting surface, and under the conditions that no load must be applied and front-end att. must be the 9.5m basic boom only). Gradeability — 30% (17°) permissible based on basic machine without front-end attachment.
